Monitor. Control. Save.
The Next Generation of Energy Management Starts Here. Available with RF or 4G.
Tech OVN Advanced Smart Energy Meters—Single & Three Phase for Real-time data, Two-way communication, Ultimate transparency giving power to customers. Our design ensures sustained accuracy of class 1.0 for 15 years.
Similarly the Smart electric meters help the consumers modify their individual power consumption habits and contribute to judicious and responsible consumer behavior.
TechOVN provides the following features in our smart meters-
- Tamper Proof– Our smart electric meter systems can help the utilities respond to tamper events immediately. Along With the built-in tamper detection and protection system, our smart meters are able to send a real-time warning to the utility when tampering is being attempted and even impose penalties.
- Two way communication– Our smart energy meters provide both the customers and utility with real time data and enable two way communications so that only accurate information is provided.
- Firmware updates and upgrades– Our smart metering systems allow for remotely controlling the firmware updates and upgrades.
- Customizable– Our smart energy meters can be programmed for Net Meter or forward metering functionalities and Prepaid or Postpaid.
- Effective and Immediate Data Collection– Our inbuilt wireless systems allow in for real time and accurate data collection.
- In built relay– This allows to control overloading or prepayment in the meters
- Automated Billing– No need to manually bill, everything is automated and sent to the consumer

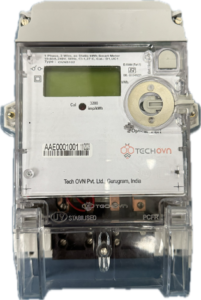

Single Phase
Ø 4G or RF Communication
Ø BIS 16444 Certified
Ø Accuracy Class One
Ø Tech OVN HES/ MDM and Billing System
Ø Bluetooth Optional
| Meter Type | 1 Phase 2 Wire Direct Connected |
| Standards | IS 16444, IS 15959, IS 15884 |
| Model | OVNS102 |
| Rated Voltage | 240 V (-40% to +20%) Single Phase |
| Rated Current | Basic current (lb) = 10A, Maximum current (Imax) = 60A |
| Load Management | Relay |
| Starting Current | 0.2% lb |
| Frequency | 50 Hz ±5% |
| Pulse Constant | 3200 imp/kwh |
| DLMS category | D1 |
| Single Wire Metering | Comply |
| Net Metering | Possible |
| Tamper & Anti Tamper | Comply |
| Ingress Protection | IP 51 |

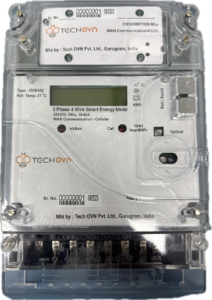

Three Phase
| Meter Type | 3 Phase 4 Wire Direct Connected |
| Standards | IS 16444, IS 15959, IS 15884 |
| Model | OVNS302 |
| Rated Voltage | 3 x 240 V (P-N) Three Phase |
| Rated Current | Basic current (lb) = 10A, Maximum current (Imax) = 60A |
| Load Management | Relay |
| Starting Current | 0.4% lb |
| Frequency | 50 Hz ±5% |
| Pulse Constant | 1000 imp/kwh |
| DLMS category | D2 |
| Single Phase Metering | Comply |
| Net Metering | Possible |
| Tamper & Anti Tamper | Comply |
| Ingress Protection | IP 51 |
Frequently Asked Questions
As one of the leading smart energy meter manufacturers in India, Tech OVN recognises that smart meters will greatly improve transparency in billing, efficient use of energy, access to accurate data, compliance as well as performance of energy supply in India.
Smart meter manufacturing companies provide their smart meters to Utilities and then they can be installed at the customers’ premises. Smart electric meters can be installed in buildings, homes, hospitals, hotels, industries, etc.
Smart electric meters accurately measure your energy consumption and send the readings directly to Utility companies via internet signals so that there is zero human interference and zero chance of misrecording the information.
As one of the leading smart power meter manufacturers in India, Tech OVN recognises that smart meters will greatly improve transparency in billing, efficient use of energy, access to accurate data, compliance as well as performance of energy supply in India. This will greatly help in effectively managing the electricity problems being faced by India.
