Simple and reliable measurement that delivers results

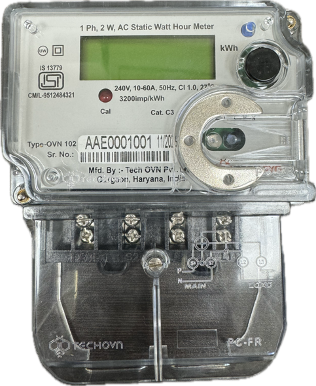

- Tech OVN manufactures single phase and three phase static electricity meters that comply with IS 13779.
- Our meters are rated with class 1 accuracy along with tamper detection, recording and tamper penalty.
- Our meters are designed to be customisable as per customer requirements and specifications.
- These meters can also be used as sub meters or net meters. The meter records correct energy with the same accuracy even with reverse current conditions.
- An optical port is in the front of the meter for automatic meter reading. Accuracy is maintained even with variable frequency, voltage fluctuations or current fluctuations.
- Our meters even have an open cover detection built in to avoid any physical tampering of the meter.
Meter Type | 1 Phase 2 Wire Direct Connected |
Standards | IS 13779 |
Model | OVN102 |
Rated Voltage | 240 V (-40% to +20%) Single Phase |
Rated Current | Basic current (lb) = 10A, Maximum current (Imax) = 60A |
Data Provided | Voltage, Current, Power Factor, Kw, KVa, Day, Date , Time, Frequency, Kwh |
Starting Current | 0.2% lb |
Frequency | 50 Hz ±5% |
Pulse Constant | 3200 imp/kwh |
DLMS category | C3 |
Single Wire Metering | Comply |
Display Mode | Auto, Push button |
Tamper & Anti Tamper | Comply |
Ingress Protection | IP 51 |
Coomunication | Optical Port, RS 232, Bluetooth (Optional) |
