Mobile App
Configure. Monitor. Report.
All From Your Phone.
The Tech OVN App is the universal companion for every Titan meter. Commission communication and protocols, view live diagnostics remotely over WiFi, and generate professional PDF energy audit reports on site — no laptop, no serial console.
Universal Configuration
Set up WiFi, Ethernet, RS485, MQTT, or Modbus from one interface. Works with the Energy Intelligence Platform or any third-party BMS/SCADA.
Live Remote Diagnostics
Real-time voltage, current, power, PF, harmonics, and energy data streamed to your phone. No need to stand at the panel.
Instant Audit Reports
Generate professional PDF energy audit reports on site. Purpose-built for ESCOs and facility managers running temporary measurement campaigns.
iOS and Android. App store links coming with public release.
Tech OVN App
Select connectivity
Tech OVN App
Select protocol
What It Does
The Tech OVN App connects to any Titan meter over WiFi and gives field engineers, commissioning teams, and energy auditors everything they need in a single interface.
01 — Commission
Commission Any Protocol

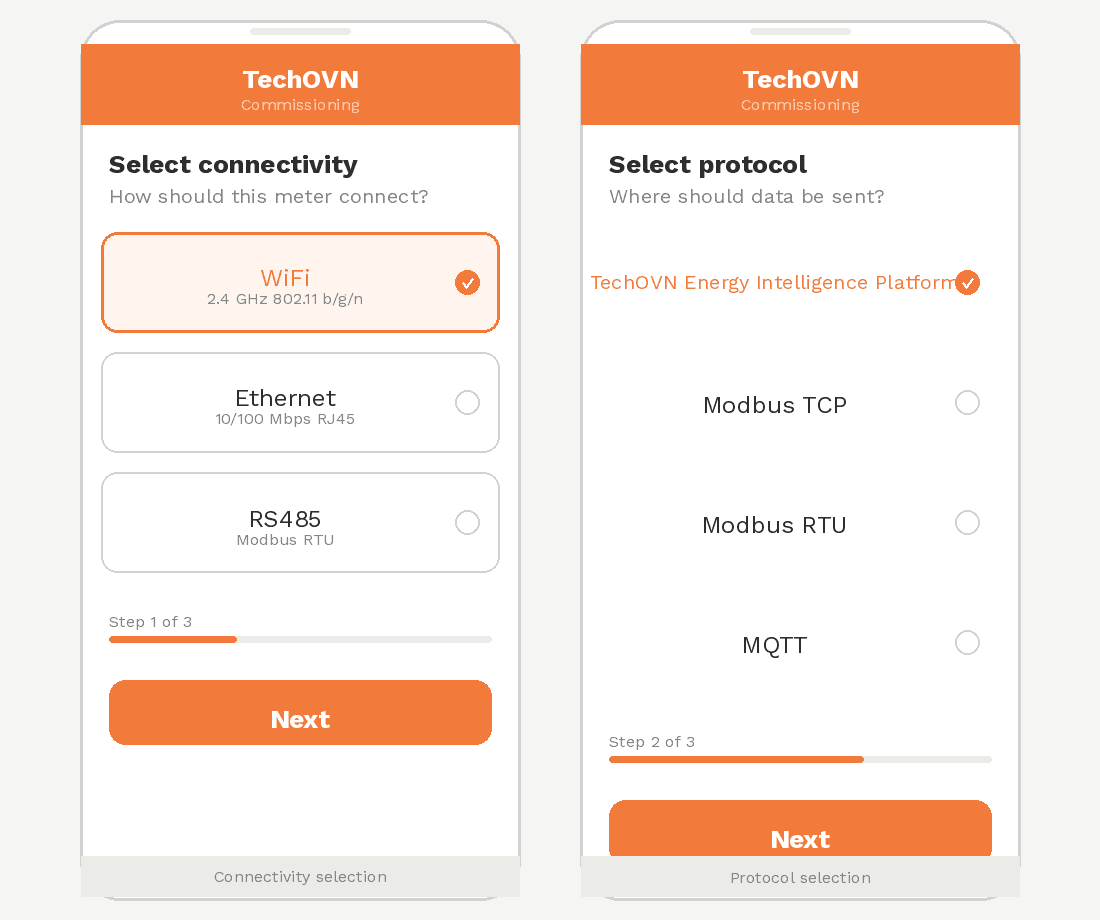

Configure the meter's communication stack from your phone. Select WiFi for cloud connectivity to the Energy Intelligence Platform, or set up Ethernet, RS485, MQTT, or Modbus RTU/TCP for integration with third-party BMS, SCADA, or gateway systems. All protocol parameters — baud rate, slave ID, IP address, topic paths, register maps — are configurable through guided setup screens. No laptop or serial console needed.
02 — Monitor
Monitor Live Data Remotely

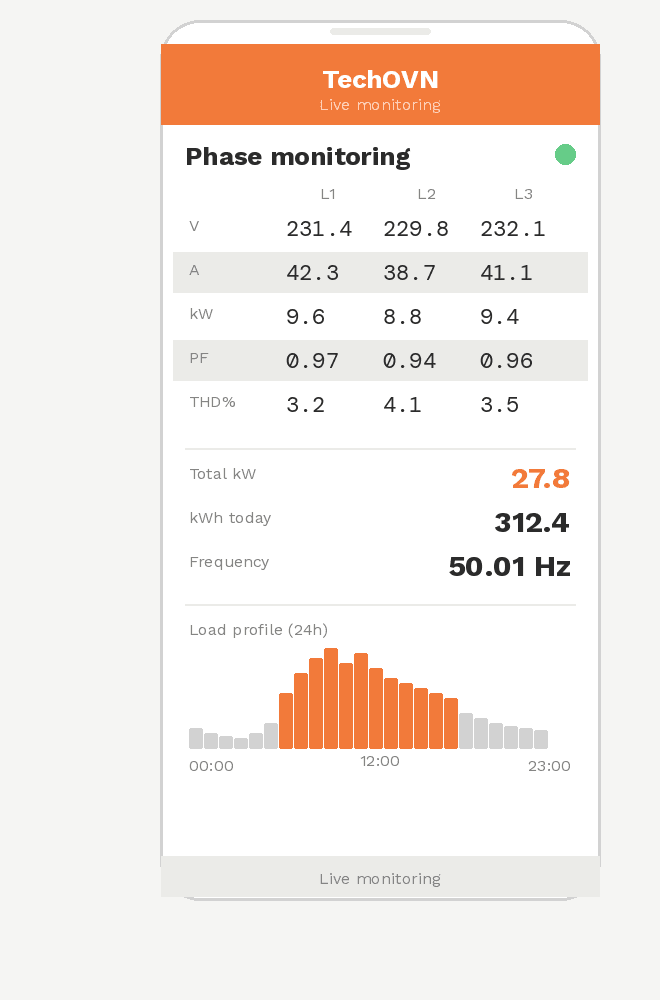

Stream real-time measurements from the meter to your phone: per-phase voltage, current, active/reactive/apparent power, power factor, frequency, kWh, kVARh, THD, and harmonic spectrum. Verify CT polarity, check phase sequence, confirm measurement accuracy, and troubleshoot installation issues without opening the panel or squinting at the meter's LCD.
03 — Report
Generate Audit Reports

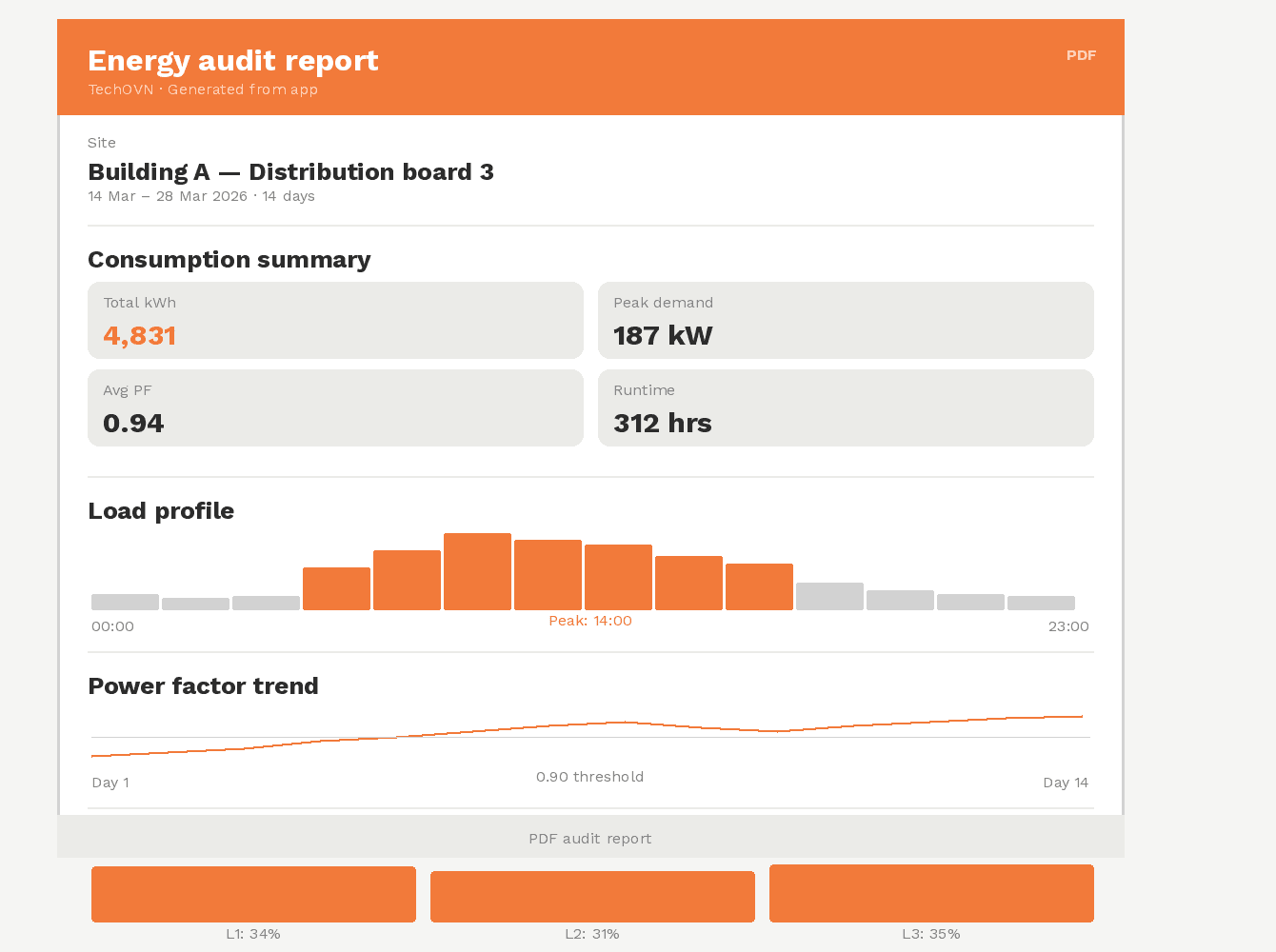

For temporary energy audits where a Titan Audit meter is deployed, the app generates a comprehensive PDF report covering: consumption summary over the audit period, load profile with peak demand identification, power factor trend and penalty estimation, time-of-use breakdown, and phase balance analysis. The report is branded, professional, and ready to hand to the client or attach to an ESCO proposal.
Built for Titan Audit

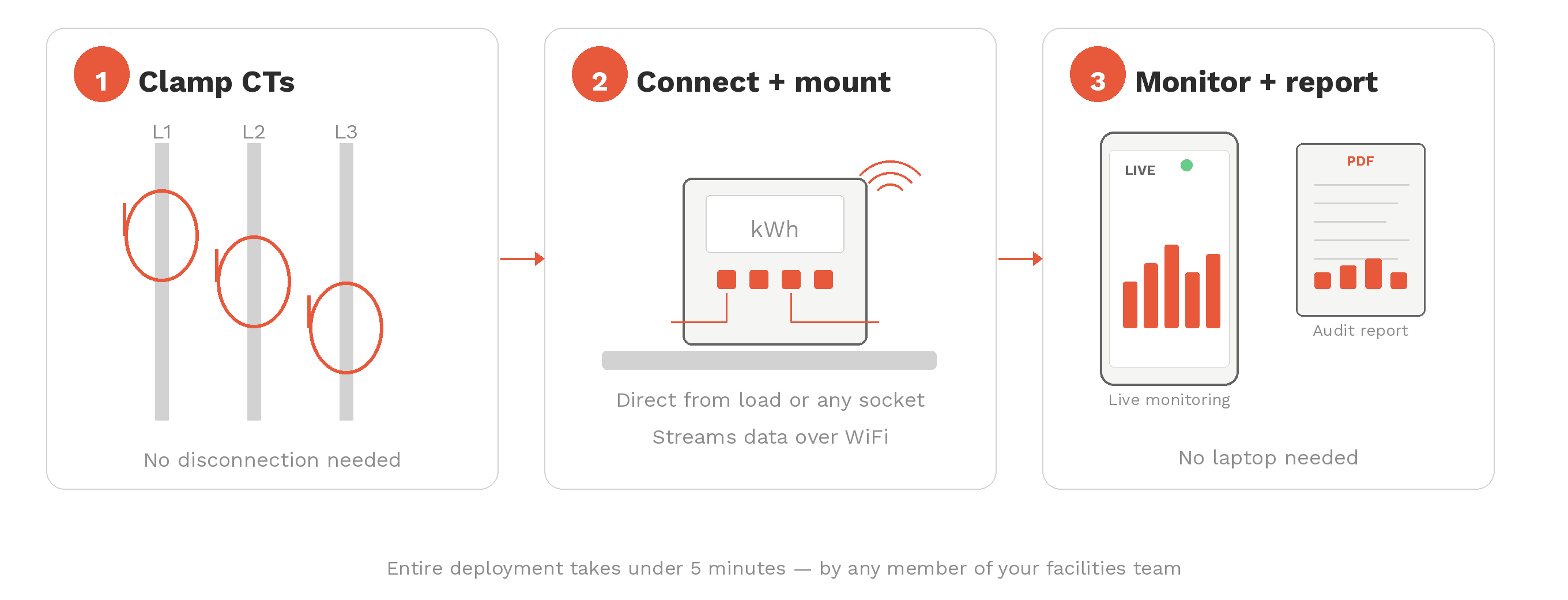

The app is the natural companion for Titan Audit — Tech OVN's rapid-deployment energy logger with split-core CTs. For ESCOs and facility managers who need to run a temporary energy audit without shutting down the circuit:
- 1
Clamp the split-core CTs around the conductors — no disconnection required
- 2
Power up the Titan Audit meter on the DIN rail
- 3
Open the Tech OVN App and connect over WiFi
- 4
The meter begins logging immediately — monitor live data from anywhere on the same network
- 5
After the audit period (days, weeks, or months), generate the PDF report directly from the app
- 6
Remove the meter and move to the next site — or leave it installed for permanent monitoring
No cloud subscription required for audit reports.
The data stays on the meter, the report is generated locally on your phone.
Supported Protocols & Features
The full app spec sheet — what it speaks, what it measures, and what it generates.
| Parameter | Specification |
|---|---|
| Connectivity | WiFi (2.4 GHz, 802.11 b/g/n) |
| Configurable Protocols | WiFi, Ethernet, RS485, MQTT, Modbus RTU/TCP |
| Live Parameters | V, I, P, Q, S, PF, f, kWh, kVARh, kVAh, THD (per phase) |
| Harmonics | Up to 31st harmonic, per phase |
| Audit Report Contents | Consumption summary, load profile, peak demand, PF trend, TOU breakdown, phase balance |
| Report Format | PDF — branded, client-ready |
| Compatible Meters | All Titan variants (Base, Audit, PQ, Plus BTU, Asset, Compliance, EV) |
| Platform | iOS and Android |
Get the App
iOS and Android — same feature set on both. Download links go live with public release.
