Titan — 3 Phase Smart Energy Meter
Titan is a 3-phase DIN-rail energy meter for sub-metering in commercial buildings and industrial plants: Class 0.5S (IEC 62053-22), 48–500 V, external 5 A CTs from 100 A to 1000 A, harmonics and THD to the 31st, with WiFi, Ethernet and RS485 (Modbus RTU/TCP, BACnet, MQTT) built in.
- Ships from stock
- No minimum order
- 2-year warranty
- CE certified
- Accuracy
- Class 0.5S
- IEC 62053-22 active, Class 1 reactive
- Voltage
- 48–500 V AC
- 3-phase, or 3 × single phase
- Current input
- 100–1000 A
- External 5 A CTs, ring or split-core
- Connectivity
- WiFi · Ethernet · RS485
- No gateway needed
- Protocols
- Modbus · BACnet · MQTT
- RTU/TCP, MS/TP and IP
- Size
- 94 × 89 × 69 mm
- DIN rail, IP51 front face
Trusted by energy & industrial leaders
Why Engineers Choose Titan
Titan is what panel builders also call a multifunction meter (MFM), trivector meter or network analyser. This is why engineers, facility managers and ESCOs specify it for sub-metering.
Class 0.5S, the accuracy of a billing meter
Active energy to IEC 62053-22 Class 0.5S, reactive to Class 1. Good enough to bill tenants from, not just to watch trends.
WiFi, Ethernet and RS485 in the meter
Modbus RTU/TCP, BACnet MS/TP and BACnet/IP, and MQTT straight from the DIN rail. Your BMS or cloud reads it directly, with no gateway box in the panel.
CO₂ worked out on the meter
Set an emission factor for each source (grid, diesel generator, solar) and Titan reports kg CO₂ alongside kWh, ready for Scope 2 and ESG reports.
Logs and alarms without a PC
Load profile, maximum demand, up to 8 TOU zones and an event log are stored on the meter. A relay output can trip an alarm or contactor when a limit is crossed.
Finds what the main bill hides
Metering each feeder shows the idle loads, bad schedules and low power factor that one building-level meter averages away.

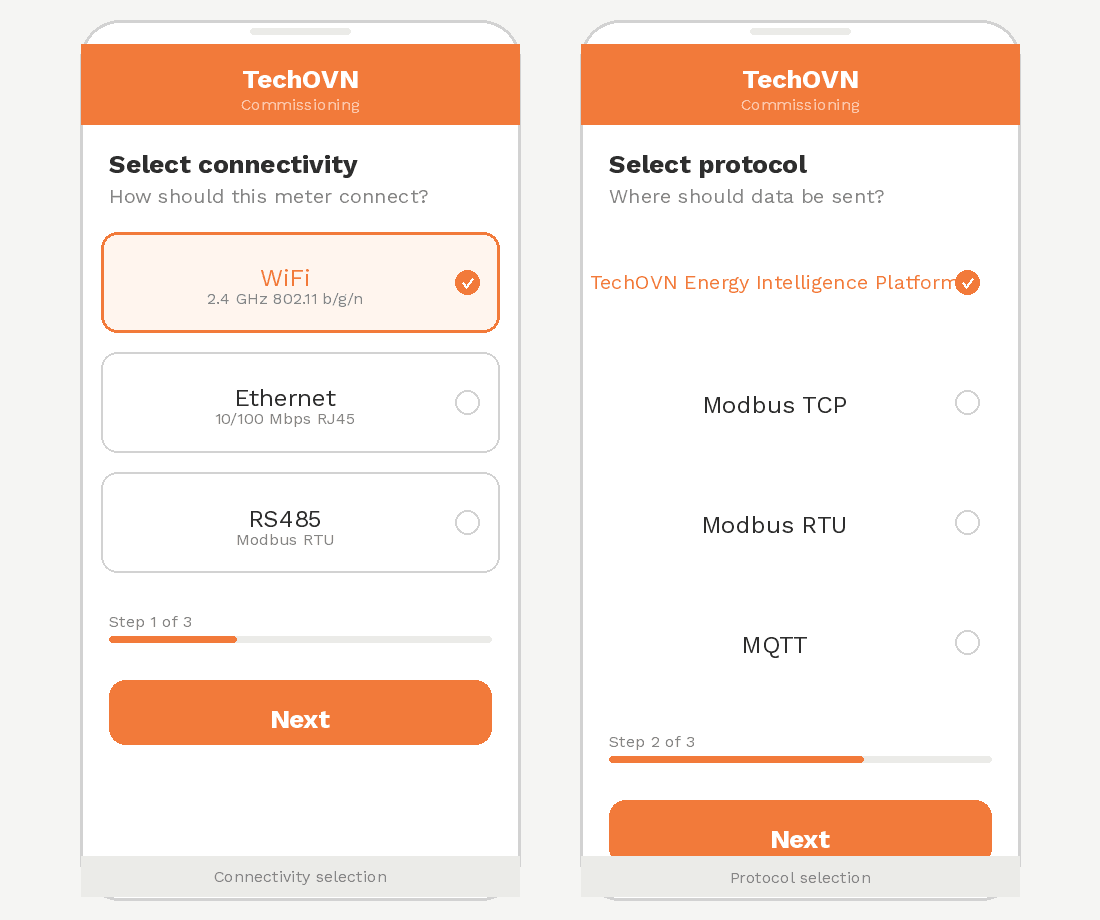

Commissioned from a phone
Scan the QR code in the Titan app, enter the WiFi details and the meter is online. No laptop, serial cable or vendor software.

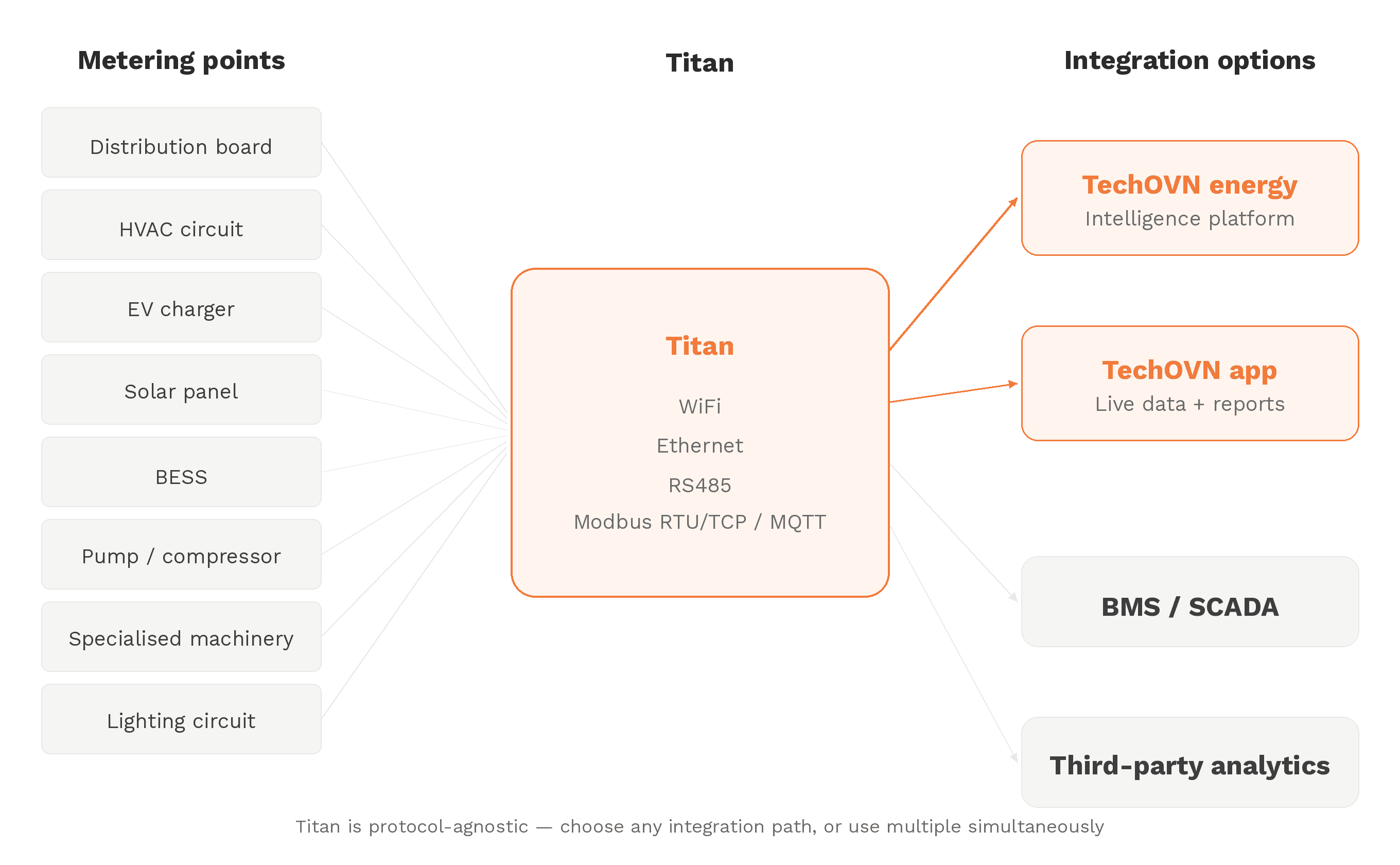

System Architecture
Titan sits between any electrical circuit and any data destination — cloud, BMS, or analytics platform of your choice.
Metering points
- Distribution board
- HVAC circuit
- EV charger
- Solar panel
- BESS
- Pump / compressor
- Specialised machinery
- Lighting circuit
The Meter
Titan
WiFi · Ethernet · RS485
Modbus · BACnet · MQTT
Integration options
Tech OVN Energy Intelligence Platform
Titan App
Live data + reports
BMS / SCADA
Third-party analytics
Protocol-agnostic — choose any integration path, or use multiple simultaneously.
Additional sensors can be polled using RS485 on the Titan meter — temperature, vibration, flow — giving more complete condition monitoring data from the DIN rail.
Technical Specifications
Full datasheet — measurement, communication, mechanical, and data logging.
Titan is a full multifunction meter (MFM) — measuring V, I, kW, kVA, kVAR, PF, kWh and harmonics on a single DIN-rail device for electrical-panel sub-metering.
Measurement
| Parameter | Specification |
|---|---|
| Accuracy Class (Active) | Class 0.5S |
| Accuracy Class (Reactive) | Class 1 |
| Voltage Range | 48V to 500V AC |
| Current Input | LTCT — external CTs, 100 A–1000 A (5 A secondary, Class 0.5S CTs) |
| CT Ratings & Type | 100 / 200 / 400 / 600 / 800 / 1000 A; ring (solid-core) or split-core |
| Frequency | 50/60 Hz |
| Parameters | V, I, P, PF, f, kWh, kVARh, kVAh |
| Advanced Metrics | Load Hours, Max Demand, Power Cycles |
| Harmonics | Individual voltage & current harmonics up to 31st order (per phase) |
| Voltage THD (THD-V) | Per phase, computed to the 31st harmonic |
| Current THD (THD-I) | Per phase, computed to the 31st harmonic |
| Phases | 3 phase or 3 × single phase |
| Dual Source | Diesel Generator power generation calculations |
Communication
| Parameter | Specification |
|---|---|
| WiFi | Built-in 2.4 GHz (802.11 b/g/n) |
| Ethernet | Built-in 10/100 port — Modbus TCP and BACnet/IP, no serial gateway |
| RS485 | 2-wire bus, Master or Slave — Modbus RTU or BACnet MS/TP, selectable |
| Modbus | Modbus RTU (over RS485) + Modbus TCP (over Ethernet) |
| BACnet | BACnet MS/TP (over RS485) + BACnet/IP (over Ethernet or WiFi) — no gateway |
| MQTT | Publish to any broker over WiFi/Ethernet, TLS-secured |
| HTTP / HTTPS push | JSON instant frame posted to an endpoint you specify |
| TCP/IP push | Raw socket push to a configured host and port |
| REST API | On-device provisioning and commissioning — WiFi setup, transport config, RS485 role, OTA, status and event reads |
| Simultaneous | Modbus and MQTT run at the same time |
| Relay Output | Configurable relay output — drive an external contactor or alarm |
| Pulse Output | Energy pulse output for legacy BMS / data loggers |
Mechanical
| Parameter | Specification |
|---|---|
| Mounting | DIN rail |
| Display | 3 Row |
| Dimensions | 94 × 89 × 69 mm |
| Enclosure | Self-extinguishing UL94 V-0 |
| IP Rating | IP51 (front face) |
| Operating Temp. | −25°C to +70°C |
Data & Logging
| Parameter | Specification |
|---|---|
| Load Profile | 15 / 30 / 60 min intervals (configurable) |
| Configurable | Through online dashboard or phone app |
| TOD Zones | Up to 8 tariff / TOD zones |
| Maximum Demand | Block / Sliding window, configurable |
| Event Log / Warnings | Under/Over Voltage, Overcurrent, Power cycles, Harmonics, On/Off Events, Runtime |
Standards
CE certified · Designed to IEC 62052-11 · IEC 62053-22 · IEC 61010 · IEC 61000 (EMC)
Datasheet (PDF): Titan smart energy meter datasheet
Applications
Wherever you need granular, accurate, real-time energy data — Titan fits.
Energy Monitoring System
Industrial and commercial energy monitoring on every circuit. Real-time power monitoring, consumption analytics, and multi-site dashboards.
Learn More →Sub-Metering for Business
Per-circuit, per-department, per-line energy sub-metering for factories and commercial sites — allocate cost and surface waste.
Learn More →IoT Energy Meter
Cloud-connected energy metering with built-in WiFi and Ethernet. A smart energy meter using IoT — no gateway needed.
Learn More →Energy Audit & M&V
Measurement and verification for ESCO and efficiency projects. Baseline before retrofit, verify savings after.
Learn More →EV Charging Metering
Per-charger kWh monitoring, demand impact tracking, and cost allocation for EV charging infrastructure.
Learn More →Solar & DER Monitoring
Generation and consumption tracking for solar, BESS, and DG with bi-directional measurement and independent cost tracking per source.
Learn More →Energy Efficiency
Reduce electricity costs in factories and commercial buildings through demand management, power factor correction, and continuous M&V.

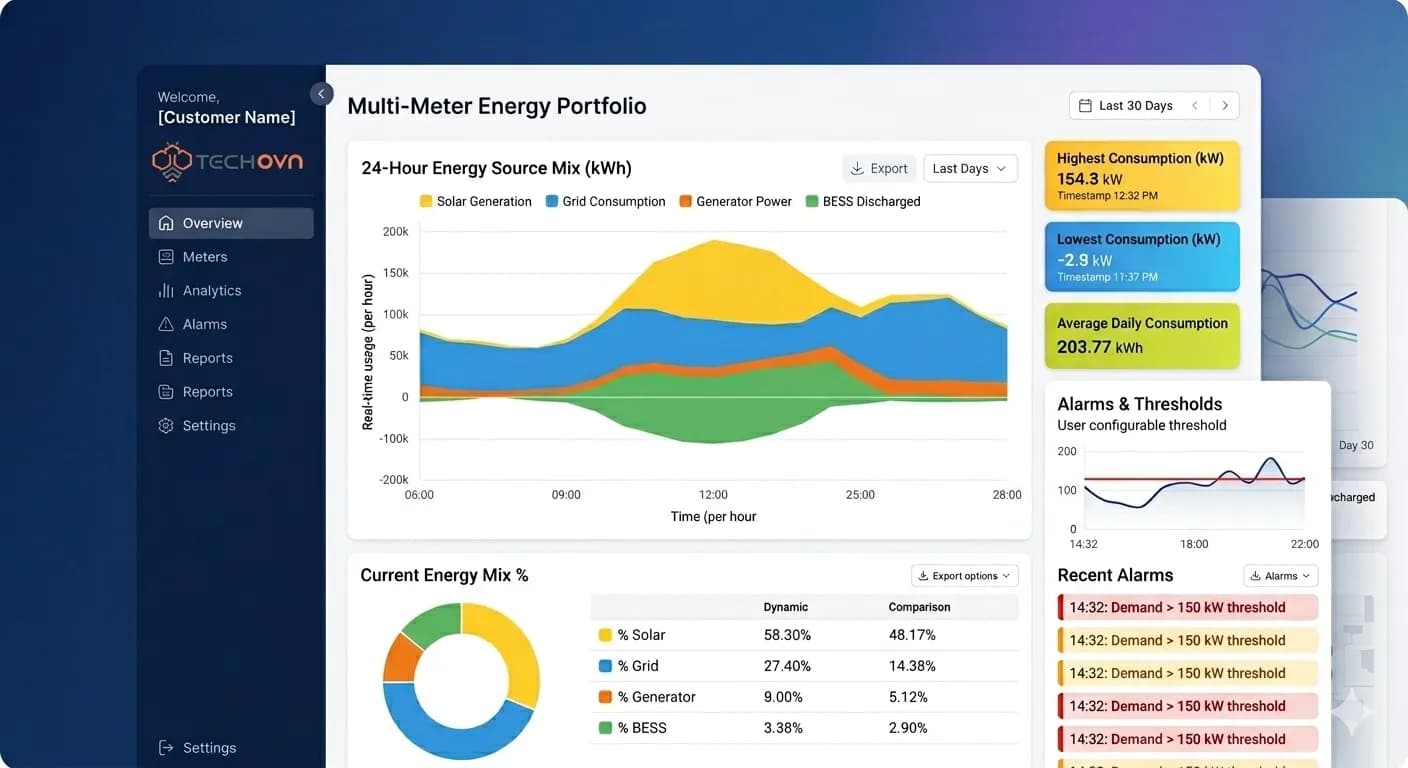

Learn More →Energy Intelligence Platform
Every Titan meter works standalone. Modbus RTU/TCP and MQTT. Connect to any BMS, SCADA, or third-party analytics platform. No Tech OVN software required.
Add the Energy Intelligence Platform when you need more. The platform is a subscription that adds multi-source comparison, BESS sizing and ROI, baseline trending, multi-site portfolio management, automated reports, and condition monitoring dashboards.
Deployed across every distribution board, Titan becomes a complete industrial energy monitoring system — with circuit-level energy dashboards, demand and power-factor tracking, and multi-site benchmarking.
Titan App
The Titan app turns commissioning, troubleshooting, and live diagnostics into a five-minute job — no laptops, no serial cables.
Commissioning
Guided setup, QR scan, WiFi credentials, done.
Safe Distance
View reports or live diagnostics over WiFi without standing at the panel.
Wireless, Device Agnostic
Any phone or tablet. iOS and Android. No laptops needed.
Troubleshooting
Diagnose connectivity issues or change server address remotely.
The Titan Family — One Platform, 11 Applications
The same accuracy, connectivity, and design language across the full metering range.
| Product | Description | Status |
|---|---|---|
| TITANYou are here | Core smart energy meter. WiFi + Ethernet + RS485 | Available |
| TITAN AUDIT | Rapid deployment logger. Split-core CT, plug & play | Available |
| TITAN EV | EV charge controller. OCPP 1.6J + 2.0.1, designed to IEC 61851 | Available |
| TITAN PQ | Power quality meter. Harmonics, sags, swells, flicker, transients | Coming Soon |
| TITAN ASSET | Condition monitoring. Energy + vibration + temperature | Available |
| TITAN PLUS BTU | Chiller efficiency meter. kW/TR + BTU on a single device | Available |
| TITAN BTU | BTU meter. Chilled water, hot water, district cooling | Available |
| TITAN COMPLIANCE | Fire pump monitoring. NFPA 25 / IS 15301 test logging | Available |
| TITAN PUMP | Pump controller. Dry-run protection + energy monitoring + remote start | Available |
| TITAN PUMP RMS | Remote pump monitoring. 4G, run hours + dry run + fault alerts | Available |
| TITAN BLOWER | Blower controller. Filter-clog + over-pressure protection + energy monitoring | Available |
How Titan Compares
Titan against a typical 3-phase DIN rail meter — across the features that matter for IoT-era sub-metering.
| Feature | Titan | Typical DIN Rail Meter |
|---|---|---|
| WiFi | Built-in | Requires external gateway |
| Ethernet | Built-in | Premium models only |
| BACnet | Built-in (MS/TP + IP) | Gateway required |
| Cloud dashboard | Platform subscription | Gateway + software licence |
| Accuracy | Class 0.5S | 0.5S premium, 1.0 standard |
| MQTT | Yes | Rarely |
| CO₂ on-device | Yes | Separate software |
| Harmonics | 31st per phase | Often limited to 15th |
| Mobile commissioning | Phone app | Laptop + proprietary software |
A 20-meter deployment with Titan needs 20 meters and your existing WiFi. The same deployment with traditional meters needs 20 meters plus 1–2 gateways, gateway power supplies, network connections, software licences, and annual fees.
Sizing & Specification Tools
Not sure exactly what you need? Use our free calculators to size Titan correctly for your site, convert between load ratings, and plan your deployment:
- →Energy Meter Sizing Calculator — work out CT rating, number of meters, and connectivity plan for your facility.
- →kVA to kW Converter — translate nameplate ratings to real current draw and PF; useful when specifying CT sizes from a single-line diagram.
How to Buy Titan
Order quantities, lead time and what is quoted separately — stated up front, so you can plan a deployment against it.
| Parameter | Specification |
|---|---|
| Price (India) | ₹ 11,000 + GST per meter. CTs extra, ₹ 950–2,500 + GST each depending on rating; optional 4G module ₹ 1,840 + GST. |
| MOQ — catalogue | None. A pilot or an evaluation order can be one meter. |
| Lead time | Regular orders ship from stock. Large quantities (200 units or more) ship 4 weeks from confirmed PO. |
| Warranty | 2 years standard from date of dispatch. |
| Current transformers | Sold separately. Ring CTs, each + GST: 100 A ₹950 · 200 A ₹1,050 · 400 A ₹1,400 · 600 A ₹1,800 · 800 A ₹2,100 · 1000 A ₹2,500; split-core quoted on request. Titan takes external Class 0.5S CTs with a 5 A secondary — ring (solid-core) or split-core — in 100, 200, 400, 600, 800 and 1000 A ratings. Tech OVN can supply CTs matched to your per-site load, or you can source them locally to the same ratio, 5 A secondary and Class 0.5S. |
| Branded / white-label | White-label — your logo, faceplate and packaging — from 1,000 units, 4 weeks from PO. Custom enclosure, bespoke Modbus register map or custom firmware is scoped and quoted case by case under the OEM / ODM programme. |
| Integration effort | The Modbus register map, MQTT command reference and worked decode examples are published openly, so your engineers can build and test the integration before any commitment. |
| Cloud dependency | None required. Modbus RTU and Modbus TCP are local and work with no internet connection; the Tech OVN platform is optional. |
| Manufacturing | Designed, built, calibrated and tested in Delhi NCR, India. |
Need Titan in your own branding, with your own register map? See white-label, OEM & ODM meter manufacturing.
Frequently Asked Questions
Common questions about Titan's accuracy, connectivity, form factor, and integration.
Getting data into your own system
Titan is not a closed device. Every data path can be pointed at your own infrastructure — none of them require a Tech OVN server. The platform is there if you want it, not because the meter needs it.
| Interface | Use it for | Goes to |
|---|---|---|
| Modbus RTU (RS485) | Polling registers from a PLC, BMS or SCADA | Your local bus — no internet |
| Modbus TCP (port 502) | The same register map over Ethernet | Your local network |
| BACnet MS/TP | Serial BACnet for a building BMS — selectable instead of Modbus RTU | Your RS485 bus — no internet |
| BACnet/IP | The same data to a BMS over the network | Your local network |
| MQTT | Continuous publish of live data and events | Any broker you configure |
| HTTP / HTTPS push | Device posts a JSON frame on its own schedule | An endpoint you specify |
| TCP/IP push | Raw socket push where HTTP isn't wanted | A host and port you set |
| REST (provisioning) | Commissioning, network setup, OTA updates | Served by the meter itself |
The published register map covers per-phase voltage, current, power factor, frequency, phase angles and THD, active/reactive/apparent power, and nine-register energy blocks for import, export and net — repeated separately for grid and DG supply, so generator-run consumption is billed apart from grid without any post-processing. Time-of-day zones, the real-time clock, relay control and maximum demand are all configurable over the same interface.
For integrators & BMS vendors
Titan Communication & Integration Guide
The full reference — Modbus register map with worked decode examples, MQTT topic scheme and 12-command reference, JSON response schemas, push frame keys and the provisioning API. Enough for your team to build the integration before raising a PO.
PDF · No signup required
Where this fits
Titan is the measurement layer under three different jobs — the same meter, read three ways.
Energy efficiency
Measurement and verification — proving a retrofit delivered the savings it promised, and finding where the next one is.
Learn More →AI condition monitoring
The same measurement read for equipment health — predictive maintenance on motors, pumps, compressors and chillers.
Learn More →Facility management
One measurement layer serving both the energy budget and the maintenance budget across a building or a portfolio.
Learn More →Power quality analyzer
Coming soon: Titan PQ, a fixed, cloud-connected power quality analyzer designed to IEC 61000-4-30 Class S methods — harmonics, sags, swells and flicker logged continuously.
Learn More →Portable energy logger
Clamp-on 3-phase power and energy logger for energy auditors and ESCOs — survey a panel without a shutdown, then move it to the next site.
Learn More →Ready to see your energy data?
Deploy Titan on your main incomer and start capturing Class 0.5S data within a day. Or talk to an engineer first about CT sizing and architecture.
