Energy Meter Manufacturer in India — The Titan Family
The Titan family is Tech OVN's range of DIN-rail smart energy meters and monitoring devices built on one shared platform: Class 0.5S metering designed to IEC 62053-22 with WiFi, Ethernet and RS485 and Modbus and MQTT. Every product in the family is available today — Titan, Titan Audit, the MFM, Titan EV, the thermal, condition-monitoring, fire-pump, pump and blower variants — except Titan PQ, which is coming soon.
The Titan Family — One Platform, 14 Applications
One shared metering and connectivity platform, applied across energy, thermal, condition, pump and EV applications.
Titan
Class 0.5S 3-phase DIN rail smart energy meter with WiFi, Ethernet, RS485, Modbus, and MQTT — the core of the Titan family.
Learn More →Titan Audit
Rapid-deployment energy logger with split-core CTs. Installs in under five minutes, no shutdown. PDF reports from the phone app.
Learn More →Titan EV
OEM EV charger controller with integrated relay, protection, metering, and OCPP 1.6J / 2.0.1. Build branded chargers faster.
Learn More →Coming SoonTitan PQ
Power quality monitor designed to IEC 61000-4-30 Class S methods — harmonics to the 63rd, voltage sags, swells, transients. For plants with sensitive loads.

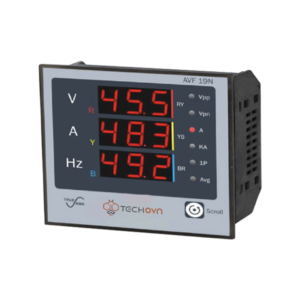

Learn More →Multifunction Meter (MFM)
Titan in a standard 96 × 96 mm panel housing — 3-phase Class 0.5S MFM with RS485 Modbus, Modbus TCP and MQTT. From ₹ 7,500.
Learn More →Coming SoonPower Quality Analyzer
Titan PQ deployed as a fixed power quality analyzer, designed to IEC 61000-4-30 Class S methods — continuous harmonics, sags and swells, EN 50160 reports.
Learn More →Portable Energy Logger
Titan Audit for energy auditors and ESCOs — a clamp-on 3-phase logger that moves from site to site.
Learn More →Titan Asset
AI-powered condition monitoring — energy metering + vibration FFT + temperature in one DIN rail device.
Learn More →Titan Plus BTU
Combined electrical + thermal energy metering for chiller plants. Real-time COP calculation on-device.
Learn More →Titan BTU
EN 1434 thermal energy meter for chilled water, hot water, and district cooling/heating systems.
Learn More →Titan Compliance
Fire pump regulatory monitoring. Automated NFPA 25 / IS 15301 test logging, missed-test warnings, compliance PDFs.
Learn More →Titan Pump
Smart pump controller that replaces the pump panel. Multi-signal dry-run protection, single-phasing prevention, wear detection, energy monitoring, and remote start.
Learn More →Titan Pump RMS
Remote pump monitoring system over 4G. Supply availability, run status and run hours, dry-run and overload alarms, and pump-failed-to-start detection across hundreds of unmanned sites.
Learn More →Titan Blower
Smart blower controller that replaces the blower panel. Over-pressure and clogged-filter protection, belt-slip detection, lead-lag rotation, energy monitoring, and remote start.
Learn More →Why Specify a Tech OVN Energy Meter
Four capabilities at the core of the Titan meters, carried into the thermal, EV, and condition monitoring variants.
Utility-Grade Accuracy
Class 0.5S, designed to IEC 62053-22, across the Titan series meters. Metrological precision suitable for tenant sub-billing, sub-metering, and energy audits.
Triple Connectivity
WiFi, Ethernet, and RS485 built into Titan and Titan Audit. Modbus RTU/TCP, BACnet and MQTT, with Modbus and MQTT running simultaneously. Feed BMS, SCADA, and cloud platforms at the same time — no gateway required.
Compact DIN Rail
Titan and Titan Audit sit in a 94 × 89 × 69 mm DIN rail housing — fits inside the same control panel as building electrical metering and chiller controls, no separate enclosure or civil work.
Edge Computing
On-device demand profiling, harmonic analysis, CO₂ tracking, tariff registers, and event logging — intelligence that doesn't depend on cloud availability.
Engineered in India — Built for Global Deployment
Tech OVN operates a 7.5 acre manufacturing facility and has made energy meters since 2019, as part of the OVN Engineers group (power & water, est. 1949). Every Titan meter is designed, assembled, calibrated, and tested in-house, giving us full control over accuracy and reliability.
Certification & Design Standards
- CE certified — Titan series
- Designed to IEC 62052-11 — General requirements for electricity metering equipment
- Designed to IEC 62053-22 — AC active energy metering, Class 0.5S
- Designed to IEC 61010 — Safety requirements for electrical measurement
- Designed to IEC 61000 — Electromagnetic compatibility (EMC)
- Designed to EN 1434 Class 2 — Heat meters (Titan BTU family)
Platform & App — The Data Layer Above the Meters
Every Titan meter works standalone via Modbus, MQTT, or any BMS — but when you need dashboards, multi-site portfolios, and ESG reporting, Tech OVN provides the cloud-based Energy Management System (EMS) and the Titan App for commissioning and on-site audit reports from your phone.
Energy Meter Variants & Ratings
Single-phase and three-phase energy meters across the common Indian and export voltage and current ratings — direct-connected or CT-operated, DIN rail, with RS485 Modbus, Modbus TCP, and MQTT. Need a specific rating, connector, or register map? We manufacture and supply to spec.
Across the Titan Range
| Parameter | Specification |
|---|---|
| Phases | 3 phase or 3 × single phase |
| Voltage | 48 V to 500 V AC, 50/60 Hz. HT / 11 kV feeders are metered via customer-installed CTs and PTs |
| Current | LTCT — external CTs, 100 A–1000 A (5 A secondary, Class 0.5S CTs): 100 / 200 / 400 / 600 / 800 / 1000 A. Titan: ring or split-core; Titan Audit: split-core only |
| Form factor | DIN rail (94 × 89 × 69 mm); also a 96 × 96 mm panel-mount MFM |
| Communication | WiFi, Ethernet, RS485 (Modbus RTU or BACnet MS/TP, selectable), Modbus TCP, BACnet/IP, MQTT — no gateway |
| Measurement | Bidirectional kWh / kVArh (import & export), power factor, demand, harmonics to the 31st, Class 0.5S (designed to IEC 62053-22) |
| Supply model | No-MOQ catalogue — regular orders ship from stock, 200 units or more 4 weeks from PO; white-label (your branding) from 1,000 units, 4 weeks from PO; custom enclosure, register map or firmware quoted case by case under the OEM / ODM programme |
Frequently Asked Questions
Common questions about the Titan energy meter family, manufacturing, and standards.
Specify a Titan meter for your project
From a single DIN rail sub-meter to a multi-site industrial rollout — contact Tech OVN for product selection, pricing, and technical support.
